Carbon Steel I-Beam
Classification :
PRODUCT DETAILS
Product Description
I-beam is mainly divided into ordinary I-beam, light I-beam and low alloy light I-beam. Ordinary I-beam and light I-beam flanges are thick on the web plate and thin on the outside. Ordinary I-beam, light I-beam, because the cross-sectional dimensions are relatively high, narrow, so the section of the two main sleeve moment of inertia difference is large, which makes it in the scope of application has a great limitation. The use of I-beam shall be selected according to the requirements of the design drawings.
Product Parameters
Material |
A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540 |
Scope of production |
H100*100-H400*400H150*75 -H900*300 |
Length |
6m, 9m, 12mor according to customer requirements |
Technology |
Hot rolled, welded |
Standard |
ASTM,AISI,JIS,GB, DIN,EN |
Surface |
Galvanized, painted;or according to your requirements |
supply capacity |
2000tons/Day |
Business Type |
Manufacturer |
Certificate |
ISO, SGS,BV |
Application |
Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc. |
loading port |
Any port in China |
Packaging |
Standard export packing or as your request |
Payment Method |
Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal. |

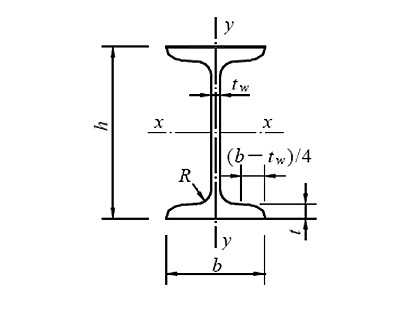

符号: h—高度; b—宽度; tw—腹板厚度; t—翼缘平均厚度; I—惯性矩; W—截面模量 |
|
i— 回转半径; Sx—半截面的面积矩; 长度: 型号 10~18,长 5~19m; 型号 20~63,长 6~19m。 |
|||||||||||||
|
尺 寸(mm) |
截面面积 (cm2) |
理论重量 (kg/m) |
x-x 轴 |
y-y 轴 |
||||||||||
|
h mm |
b mm |
tw mm |
t mm |
R mm |
|
|
Ix cm4 |
Wx cm3 |
ix cm |
Ix/Sx cm |
Iy cm4 |
Wy cm3 |
Iy cm |
|
10 |
100 |
68 |
4.5 |
7.6 |
6.5 |
14.3 |
11.2 |
245 |
49 |
4.14 |
8.69 |
33 |
9.6 |
1.51 |
|
12.6 |
126 |
74 |
5 |
8.4 |
7 |
18.1 |
14.2 |
488 |
77 |
5.19 |
11 |
47 |
12.7 |
1.61 |
|
14 |
140 |
80 |
5.5 |
9.1 |
7.5 |
21.5 |
16.9 |
712 |
102 |
5.75 |
12.2 |
64 |
16.1 |
1.73 |
|
16 |
160 |
88 |
6 |
9.9 |
8 |
26.1 |
20.5 |
1127 |
141 |
6.57 |
13.9 |
93 |
21.1 |
1.89 |
|
18 |
180 |
94 |
6.5 |
10.7 |
8.5 |
30.7 |
24.1 |
1699 |
185 |
7.37 |
15.4 |
123 |
26.2 |
2.00 |
|
20 |
a |
200 |
100 |
7 |
11.4 |
9 |
35.5 |
27.9 |
2369 |
237 |
8.16 |
17.4 |
158 |
31.6 |
2.11 |
|
b |
|
102 |
9 |
|
|
39.5 |
31.1 |
2502 |
250 |
7.95 |
17.1 |
169 |
33.1 |
2.07 |
22 |
a |
220 |
110 |
7.5 |
12.3 |
9.5 |
42.1 |
33 |
3406 |
310 |
8.99 |
19.2 |
226 |
41.1 |
2.32 |
|
b |
|
112 |
9.5 |
|
|
46.5 |
36.5 |
3583 |
326 |
8.78 |
18.9 |
240 |
42.9 |
2.27 |
25 |
a |
250 |
116 |
8 |
13 |
10 |
48.5 |
38.1 |
5017 |
401 |
10.2 |
21.7 |
280 |
48.4 |
2.4 |
|
b |
|
118 |
10 |
|
|
53.5 |
42 |
5278 |
422 |
9.93 |
21.4 |
297 |
50.4 |
2.36 |
28 |
a |
280 |
122 |
8.5 |
13.7 |
10.5 |
55.4 |
43.5 |
7115 |
508 |
11.3 |
24.3 |
344 |
56.4 |
2.49 |
|
b |
|
124 |
10.5 |
|
|
61 |
47.9 |
7481 |
534 |
11.1 |
24 |
364 |
58.7 |
2.44 |
32 |
a |
320 |
130 |
9.5 |
15 |
11.5 |
67.1 |
52.7 |
11080 |
692 |
12.8 |
27.7 |
459 |
70.6 |
2.62 |
|
b |
|
132 |
11.5 |
|
|
73.5 |
57.7 |
11626 |
727 |
12.6 |
27.3 |
484 |
73.3 |
2.57 |
|
c |
|
134 |
13.5 |
|
|
79.9 |
62.7 |
12173 |
761 |
12.3 |
26.9 |
510 |
76.1 |
2.53 |
36 |
a |
360 |
136 |
10 |
15.8 |
12 |
76.4 |
60 |
15796 |
878 |
14.4 |
31 |
555 |
81.6 |
2.69 |
|
b |
|
138 |
12 |
|
|
83.6 |
65.6 |
16574 |
921 |
14.1 |
30.6 |
584 |
84.6 |
2.64 |
|
c |
|
140 |
14 |
|
|
90.8 |
71.3 |
17351 |
964 |
13.8 |
30.2 |
614 |
87.7 |
2.6 |
40 |
a |
400 |
142 |
10.5 |
16.5 |
12.5 |
86.1 |
67.6 |
21714 |
1086 |
15.9 |
34.4 |
660 |
92.9 |
2.77 |
|
b |
|
144 |
12.5 |
|
|
94.1 |
73.8 |
22781 |
1139 |
15.6 |
33.9 |
693 |
96.2 |
2.71 |
|
c |
|
146 |
14.5 |
|
|
102 |
80.1 |
23847 |
1192 |
15.3 |
33.5 |
727 |
99.7 |
2.67 |
45 |
a |
450 |
150 |
11.5 |
18 |
13.5 |
102 |
80.4 |
32241 |
1433 |
17.7 |
38.5 |
855 |
114 |
2.89 |
|
b |
|
152 |
13.5 |
|
|
111 |
87.4 |
33759 |
1500 |
17.4 |
38.1 |
895 |
118 |
2.84 |
|
c |
|
154 |
15.5 |
|
|
120 |
94.5 |
35278 |
1568 |
17.1 |
37.6 |
938 |
122 |
2.79 |
50 |
a |
500 |
158 |
12 |
20 |
14 |
119 |
93.6 |
46472 |
1859 |
19.7 |
42.9 |
1122 |
142 |
3.07 |
|
b |
|
160 |
14 |
|
|
129 |
101 |
48556 |
1942 |
19.4 |
42.3 |
1171 |
146 |
3.01 |
|
c |
|
162 |
16 |
|
|
139 |
109 |
50639 |
2026 |
19.1 |
41.9 |
1224 |
151 |
2.96 |
56 |
a |
560 |
166 |
12.5 |
21 |
14.5 |
135 |
106 |
65576 |
2342 |
22 |
47.9 |
1366 |
165 |
3.18 |
|
b |
|
168 |
14.5 |
|
|
147 |
115 |
68503 |
2447 |
21.6 |
47.3 |
1424 |
170 |
3.12 |
|
c |
|
170 |
16.5 |
|
|
158 |
124 |
71430 |
2551 |
21.3 |
46.8 |
1485 |
175 |
3.07 |
63 |
a |
630 |
176 |
13 |
22 |
15 |
155 |
122 |
94004 |
2984 |
24.7 |
53.8 |
1702 |
194 |
3.32 |
|
b |
|
178 |
15 |
|
|
167 |
131 |
98171 |
3117 |
24.2 |
53.2 |
1771 |
199 |
3.25 |
|
c |
|
780 |
17 |
|
|
180 |
141 |
102339 |
3249 |
23.9 |
52.6 |
1842 |
205 |
3.2 |
Factory Appearance
Wugang has scale advantages, resource advantages, integration advantages, technology research and development advantages, capital operation advantages, and has a complete pre-sales, sales and after-sales service system. Positioned to produce and develop high-end wide and thick plates, we continue to innovate and seek transformation, and are willing to provide global customers with other hot-rolled plates, medium-thick plates, wire rods, cold-rolled plates, galvanized plates, stainless steel and other steel products.
Packing and shipping
We can provide
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
Application Areas
Steel has the advantages of high strength, wear resistance, corrosion resistance, etc., so it is widely used in various fields. With the advancement of science and technology and the continuous improvement of steel, it is expected that the application fields of steel will continue to expand.
