Carbon Steel H Steel

H-beam is a new type of steel for economic construction. H-beam has economical and reasonable cross-sectional shape, good mechanical properties, uniform extension of each point on the cross-section and small internal stress during rolling. Compared with ordinary I-beam, H-beam has the advantages of large cross-sectional modulus, light weight and metal saving, which can reduce the building structure by 30-40%. In addition, because its legs are parallel to the inner and outer sides and the leg ends are right angles, the welding and riveting work can be saved by 25%. It is often used in large buildings (such as factories, high-rise buildings, etc.) with large bearing capacity and good cross-sectional stability, as well as bridges, ships, lifting and transportation machinery, equipment foundations, supports, foundation piles, etc.

Classification :

H-Beams

+8613220951976

sales02@hbiswugangsteel.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Product Description

Product Parameters

Material	A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540
Scope of production	H100100-H400400H15075 -H900300
Length	6m, 9m, 12mor according to customer requirements
Technology	Hot rolled, welded
Standard	ASTM,AISI,JIS,GB, DIN,EN
Surface	Galvanized, painted;or according to your requirements
supply capacity	2000tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS,BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
loading port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

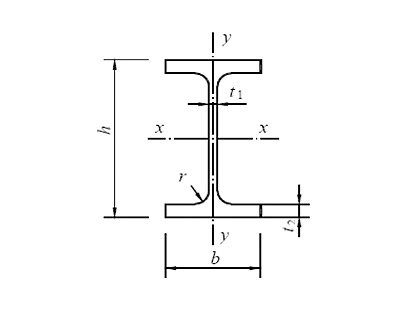

符号： h—高度； b—宽度； t1—腹板厚度； t2—翼缘厚度； I—惯性矩； W—截面模量						i— 回转半径； Sx—半截面的面积矩。
类别	H 型钢规格 (h×b×t1×t2)	截面积 A cm2	质量 q kg/m	x-x 轴			y-y 轴
				Ix	Wx	ix	Iy	Wy	Iy
				(cm4)	(cm3)	(cm)	(cm4)	(cm3)	(cm)
HW	100×100×6×8	21.9	17.2 2	383	76.576.5	4.18	134	26.7	2.47
	125×125×6.5×9	30.31	23.8	847	136	5.29	294	47	3.11
	150×150×7×10	40.55	31.9	1660	221	6.39	564	75.1	3.73
	175×175×7.5×11	51.43	40.3	2900	331	7.5	984	112	4.37
	200×200×8×12	64.28	50.5	4770	477	8.61	1600	160	4.99
	#200×204×12×12	72.28	56.7	5030	503	8.35	1700	167	4.85
	250×250×9×14	92.18	72.4	10800	867	10.8	3650	292	6.29
	#250×255×14×14	104.7	82.2	11500	919	10.5	3880	304	6.09
	#294×302×12×12	108.3	85	17000	1160	12.5	5520	365	7.14
	300×300×10×15	120.4	94.5	20500	1370	13.1	6760	450	7.49
	300×305×15×15	135.4	106	21600	1440	12.6	7100	466	7.24
	#344×348×10×16	146	115	33300	1940	15.1	11200	646	8.78
	350×350×12×19	173.9	137	40300	2300	15.2	13600	776	8.84
	#388×402×15×15	179.2	141	49200	2540	16.6	16300	809	9.52
	#394×398×11×18	187.6	147	56400	2860	17.3	18900	951	10
	400×400×13×21	219.5	172	66900	3340	17.5	22400	1120	10.1
	#400×408×21×21	251.5	197	71100	3560	16.8	23800	1170	9.73
	#414×405×18×28	296.2	233	93000	4490	17.7	31000	1530	10.2
	#428×407×20×35	361.4	284	119000	5580	18.2	39400	1930	10.4
HM	148×100×6×9	27.25	21.4	1040	140	6.17	151	30.2	2.35
	194×150×6×9	39.76	31.2	2740	283	8.3	508	67.7	3.57
	244×175×7×11	56.24	44.1	6120	502	10.4	985	113	4.18
	294×200×8×12	73.03	57.3	11400	779	12.5	1600	160	4.69
	340×250×9×14	101.5	79.7	21700	1280	14.6	3650	292	6
	390×300×10×16	136.7	107	38900	2000	16.9	7210	481	7.26
	440×300×11×18	157.4	124	56100	2550	18.9	8110	541	7.18
	482×300×11×15	146.4	115	60800	2520	20.4	6770	451	6.8
	488×300×11×18	164.4	129	71400	2930	20.8	8120	541	7.03
	582×300×12×17	174.5	137	103000	3530	24.3	7670	511	6.63
	588×300×12×20	192.5	151	118000	4020	24.8	9020	601	6.85
	#594×302×14×23	222.4	175	137000	4620	24.9	10600	701	6.9

符号： h—高度； b—宽度； t1—腹板厚度； t2—翼缘厚度； I—惯性矩； W—截面模量						i— 回转半径； Sx—半截面的面积矩。
类别	H 型钢规格 (h×b×t1×t2)	截面积 A cm2	质量 q kg/m	x-x 轴			y-y 轴
				Ix	Wx	ix	Iy	Wy	Iy
				(cm4)	(cm3)	(cm)	(cm4)	(cm3)	(cm)
HN	100×50×5×7	12.16	9.54	192	38.5	3.98	14.9	5.96	1.11
	125×60×6×8	17.01	13.3	417	66.8	4.95	29.3	9.75	1.31
	150×75×5×7	18.16	14.3	679	90.6	6.12	49.6	13.2	1.65
	175×90×5×8	23.21	18.2	1220	140	7.26	97.6	21.7	2.05
	198×99×4.5×7	23.59	18.5	1610	163	8.27	114	23	2.2
	200×100×5.5×8	27.57	21.7	1880	188	8.25	134	26.8	2.21
	248×124×5×8	32.89	25.8	3560	287	10.4	255	41.1	2.78
	250×125×6×9	37.87	29.7	4080	326	10.4	294	47	2.79
	298×149×5.5×8	41.55	32.6	6460	433	12.4	443	59.4	3.26
	300×150×6.5×9	47.53	37.3	7350	490	12.4	508	67.7	3.27
	346×174×6×9	53.19	41.8	11200	649	14.5	792	91	3.86
	350×175×7×11	63.66	50	13700	782	14.7	985	113	3.93
	#400×150×8×13	71.12	55.8	18800	942	16.3	734	97.9	3.21
	396×199×7×11	72.16	56.7	20000	1010	16.7	1450	145	4.48
	400×200×8×13	84.12	66	23700	1190	16.8	1740	174	4.54
	#450×150×9×14	83.41	65.5	27100	1200	18	793	106	3.08
	446×199×8×12	84.95	66.7	29000	1300	18.5	1580	159	4.31
	450×200×9×14	97.41	76.5	33700	1500	18.6	1870	187	4.38
	#500×150×10×16	98.23	77.1	38500	1540	19.8	907	121	3.04
	496×199×9×14	101.3	79.5	41900	1690	20.3	1840	185	4.27
	500×200×10×16	114.2	89.6	47800	1910	20.5	2140	214	4.33
	#506×201×11×19	131.3	103	56500	2230	20.8	2580	257	4.43
	596×199×10×15	121.2	95.1	69300	2330	23.9	1980	199	4.04
	600×200×11×17	135.2	106	78200	2610	24.1	2280	228	4.11
	#606×201×12×20	153.3	120	91000	3000	24.4	2720	271	4.21
	#692×300×13×20	211.5	166	172000	4980	28.6	9020	602	6.53
	700×300×13×24	235.5	185	201000	5760	29.3	10800	722	6.78

Factory Appearance

Wugang has scale advantages, resource advantages, integration advantages, technology research and development advantages, capital operation advantages, and has a complete pre-sales, sales and after-sales service system. Positioned to produce and develop high-end wide and thick plates, we continue to innovate and seek transformation, and are willing to provide global customers with other hot-rolled plates, medium-thick plates, wire rods, cold-rolled plates, galvanized plates, stainless steel and other steel products.

Packing and shipping

We can provide
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.

We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.

Application Areas

Steel has the advantages of high strength, wear resistance, corrosion resistance, etc., so it is widely used in various fields. With the advancement of science and technology and the continuous improvement of steel, it is expected that the application fields of steel will continue to expand.
